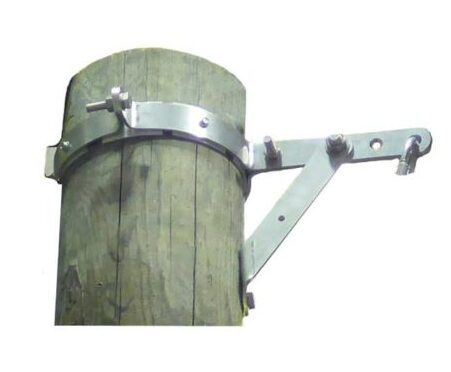

PoleLink Anchor
$849.99
Top anchor point for vertical access on poles. Can be used to anchor pulleys, retractable lanyards and vertical lifelines. Great for adventure parks and camp facilities.
Add to quote
- The PoleLink Anchor is rated as a one person anchor at 15kN.
- Tested to AS/NZS 5532:2013.
- Made entirely from stainless steel materials.
- Choice of two attachment points allowing for varied clearances from the pole.
POLELINK ACHOR
PoleLink Anchor must only be installed whilst in a Safe Work Position by a suitably competent person from an elevated work platform (EWP) or by appropriate rope access (RA) methods only. All tools should be secured with leash/lanyards to prevent accidental dropping from heights. A safe work exclusion zone needs to be created at the base of the installation site.
- The PoleLink Anchor is rated at 15kn.
- Tested to AS/NZS 5532:2013.
- Manufacturing requirements for single point anchor device used for harness based work at heights.

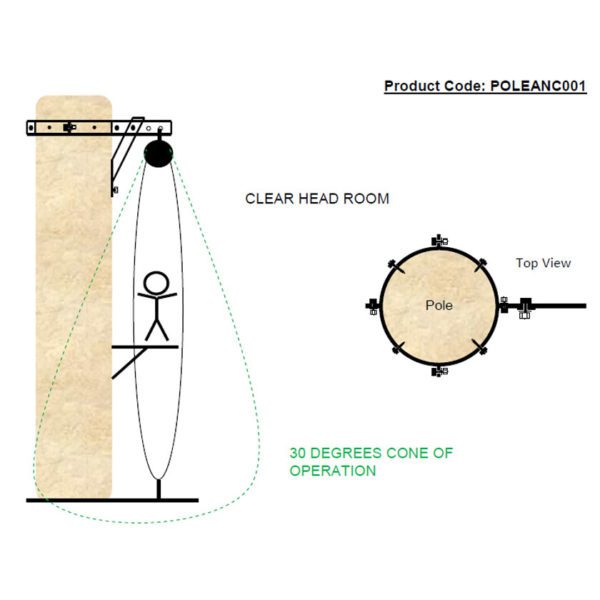

- Sufficient head clearance from end users must be considered.
- Ensure that hardware/rope/cable that will be attached to the PoleLink Anchor will have adequate clearance from all other equipment/structure that may be on the pole.
- Minimum pendulum effect must be present for the user accessing with the end system.
- Pendulum effect must be less than 30 degrees.
- During installation you must be safe at all times.
- If any doubt exists as to the strength of the structure an engineer should make the assessment.
- Failure to follow all instructions could result in a serious injury or death.
Includes:
2 x Short curved brackets
2 x Long curved brackets
1 x Brace bracket
4 x M12 304SS Bolt/washer/nut-nylocks 4 x 14-10 Roofing Screwsx75mm
1 x M16 25mm Bolt SS/Washer/Nut
1 x M12 50mm 316SS Coach Screw
