HIKMICRO
Condor CQ50L Thermal Monocular
Quote Range
$4,899.99

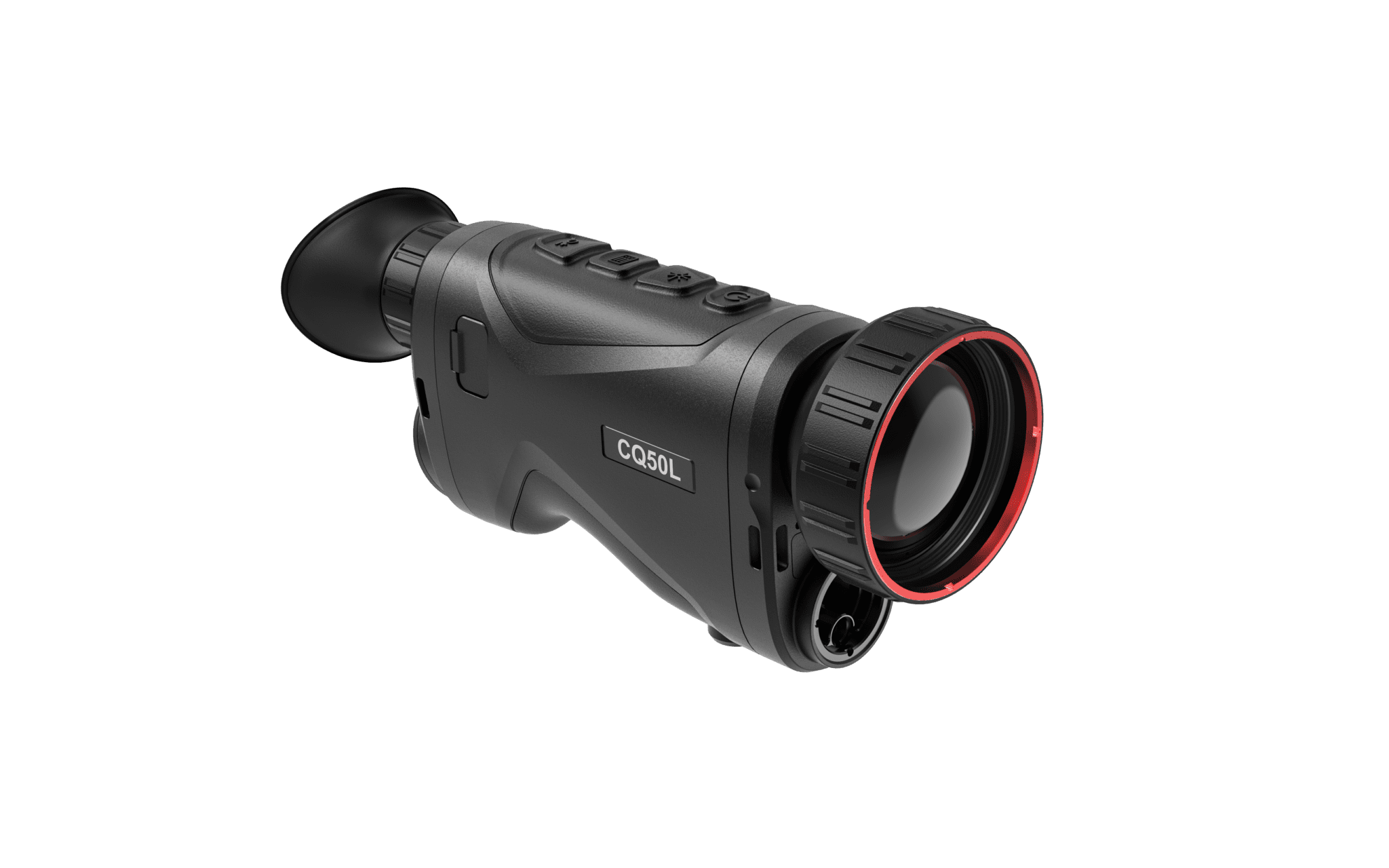

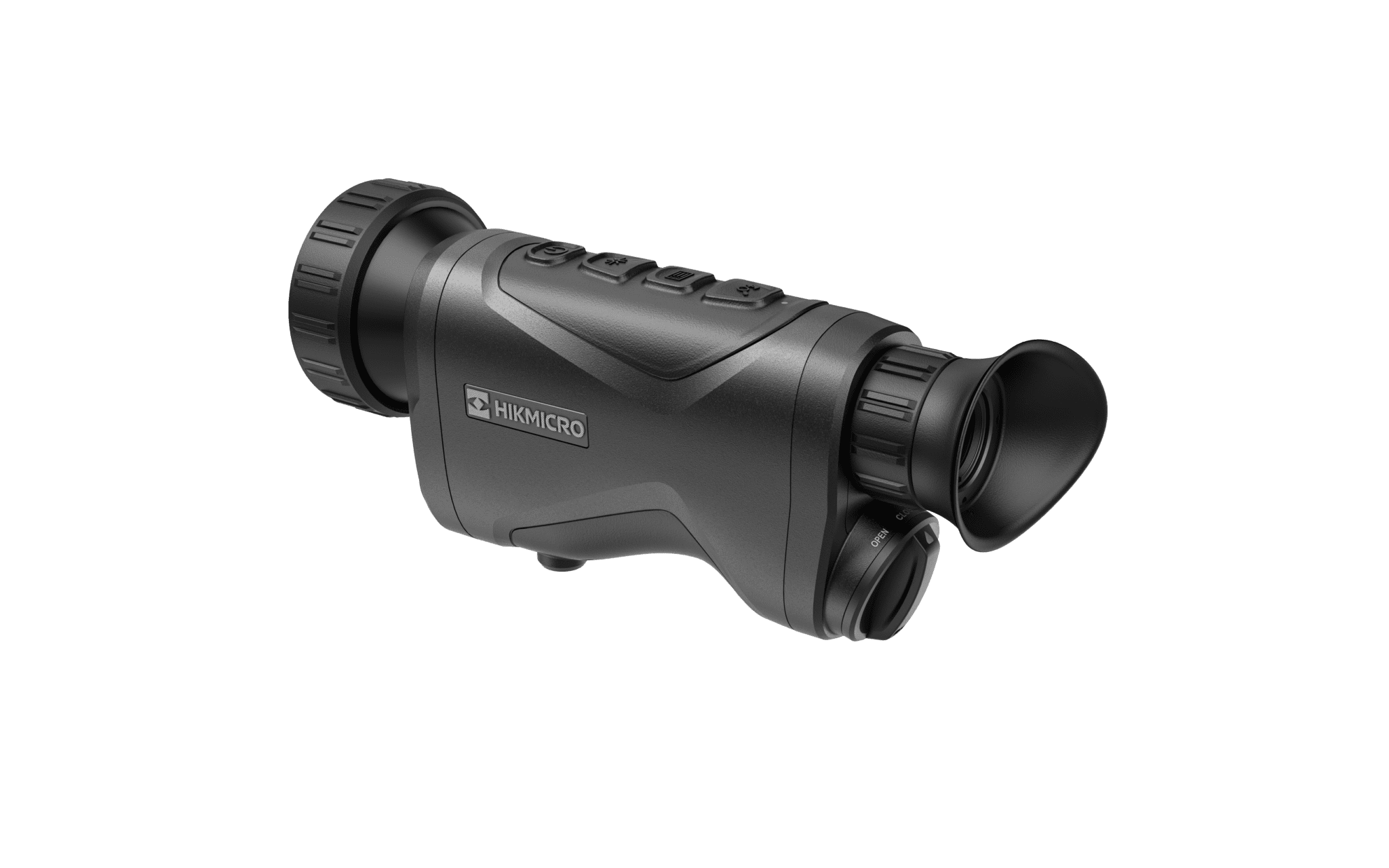

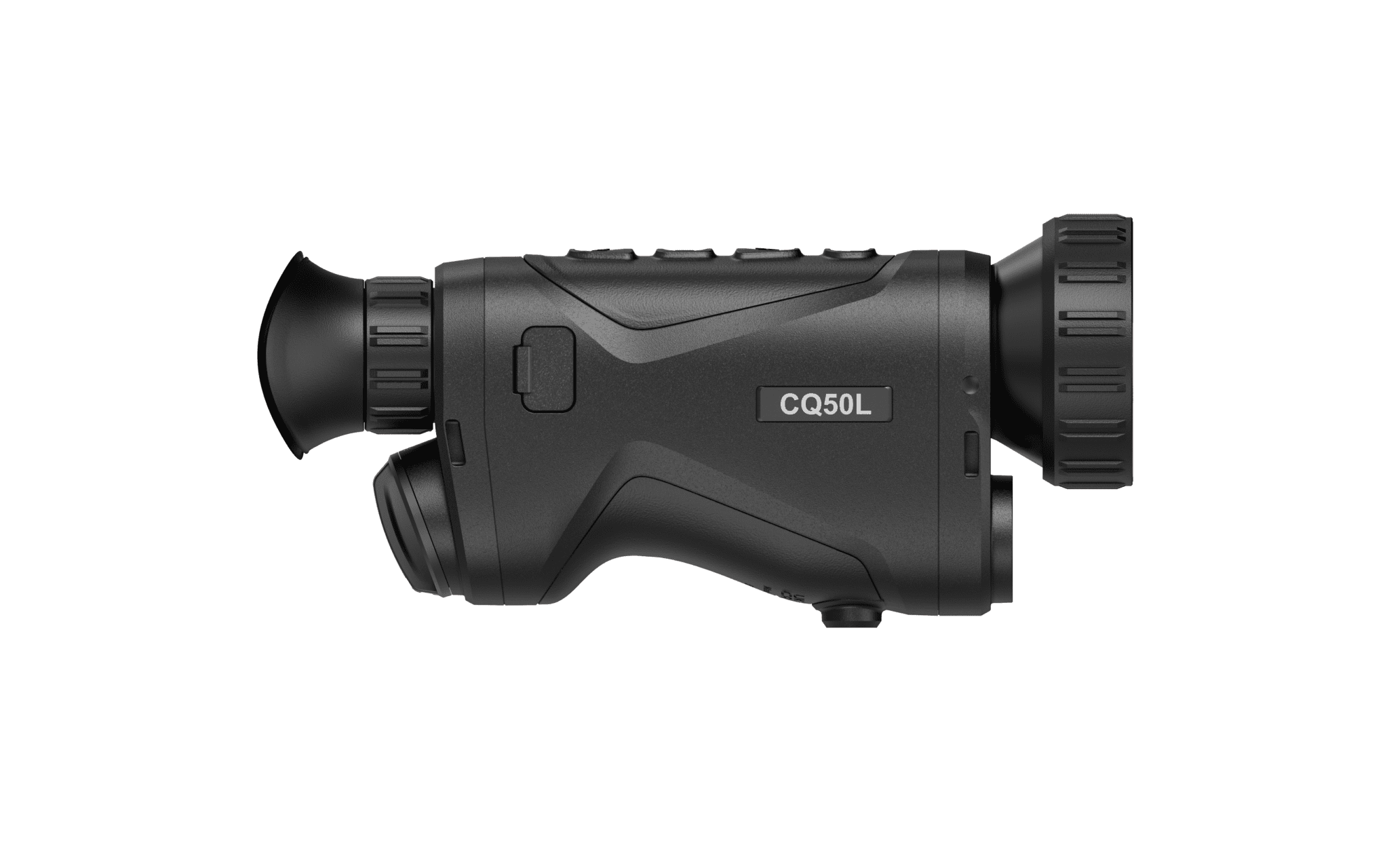

The HIKMICRO CONDOR CQ50L thermal monocular is equipped with a 640 × 512 @12 um infrared detector and a 1024 × 768 OLED display. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect ...
The HIKMICRO CONDOR CQ50L thermal monocular is equipped with a 640 × 512 @12 um infrared detector and a 1024 × 768 OLED display. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions. Its 1000 m Laser rangefinder can accurately measure the distance when you are stalking or observing under low-light conditions. It can be applied mainly in forest hunting, birding, animal searching, adventuring, and recusing scenario.
Add to quote
Add to Quote
More Details
- High sensitivity thermal module NETD < 20 mK (@25°C, F# = 1.0)
- 640 × 512 resolution with 12 μm detector
- 1024 × 768 resolution 0.39-inch OLED display
- Advanced image processing technology
- Image Pro for enhancing detail recognition
- Zoom Pro for digital zooming without loss of picture quality
- Replaceable and rechargeable Li-ion battery
- Up to 4 hours of continuous operation
- 450 g lightweight, with a compact and ergonomic design
Product Specifications
| Image Sensor: | VOx Uncooled Focal Plane Arrays |
| Max. Resolution: | 640 × 512 |
| Frame Rate: | 50 Hz |
| Pixel Interval : | 12 μm |
| Response Waveband : | 8 μm to 14 μm |
| NETD: | Less than 20 mK (@25°C), F# = 1.0 |
| Lens (Focal Length) : | 50 mm, f1.0 |
| Focus Mode : | Focus Ring |
| Detection Range : | 2600 m |
| Min. Focusing Distance: | 5 m |
| Magnification: | 3.0× to 24.0× (8×) |
| Field of View(H × V), Degrees / m @100 m: | 8.7° × 7.0°/15.2 m × 12.2 m@100 m |
| Display: | 1024 × 768, 0.39 inch, OLED |
| Palettes: | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode: | Auto, Manual, External Correction |
| Exit Pupil: | 4 mm |
| Eye Relief: | 15 mm |
| Diopter (Range) : | -5D to +3D |
| Brightness Adjustment: | Yes |
| Tone Adjustment: | Cold, Warm |
| Contrast Adjustment: | Yes |
| Image Pro : | Yes |
| Zoom Pro: | Yes |
| Record Video : | Yes |
| Capture Snapshot : | Yes |
| Audio Recording: | Yes |
| Standby Mode : | Yes |
| Storage: | Yes |
| PIP : | Yes |
| Hotspot : | Yes |
| Hot Track: | Yes |
| Distance Measurement : | Yes |
| Battery Type: | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time: | 4-hour continuous running with CVBS and hotspot function off (@25°C) |
| Type-C Power Supply: | 5 VDC, 2 A Supports External Power Supply |
| Protection Level: | IP67 |
| Dimension: | 197.1 mm × 60 mm × 94.9 mm (7.76" × 2.36" × 3.74") |
| Weight : | 450 g without battery |
| Working Temperature: | -30°C to +55°C |
| Safety Class for Laser : | Class 1 |
| Wavelength: | 905 nm |
| Max. Measuring Range : | 1000 m |
| Measurement Accuracy: | ± 1 m |
| Min. Measuring Range : | 10 m |
