HIKMICRO

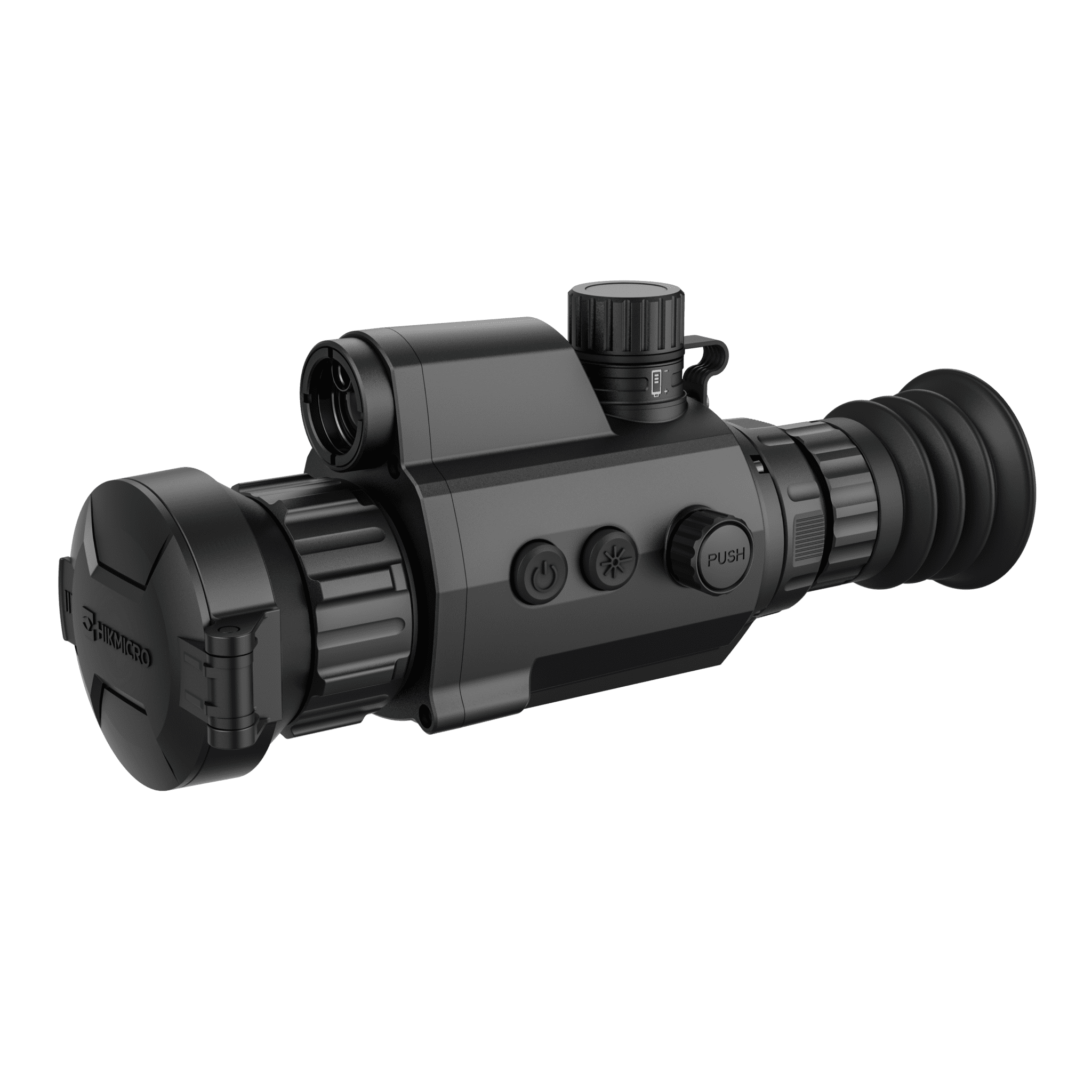

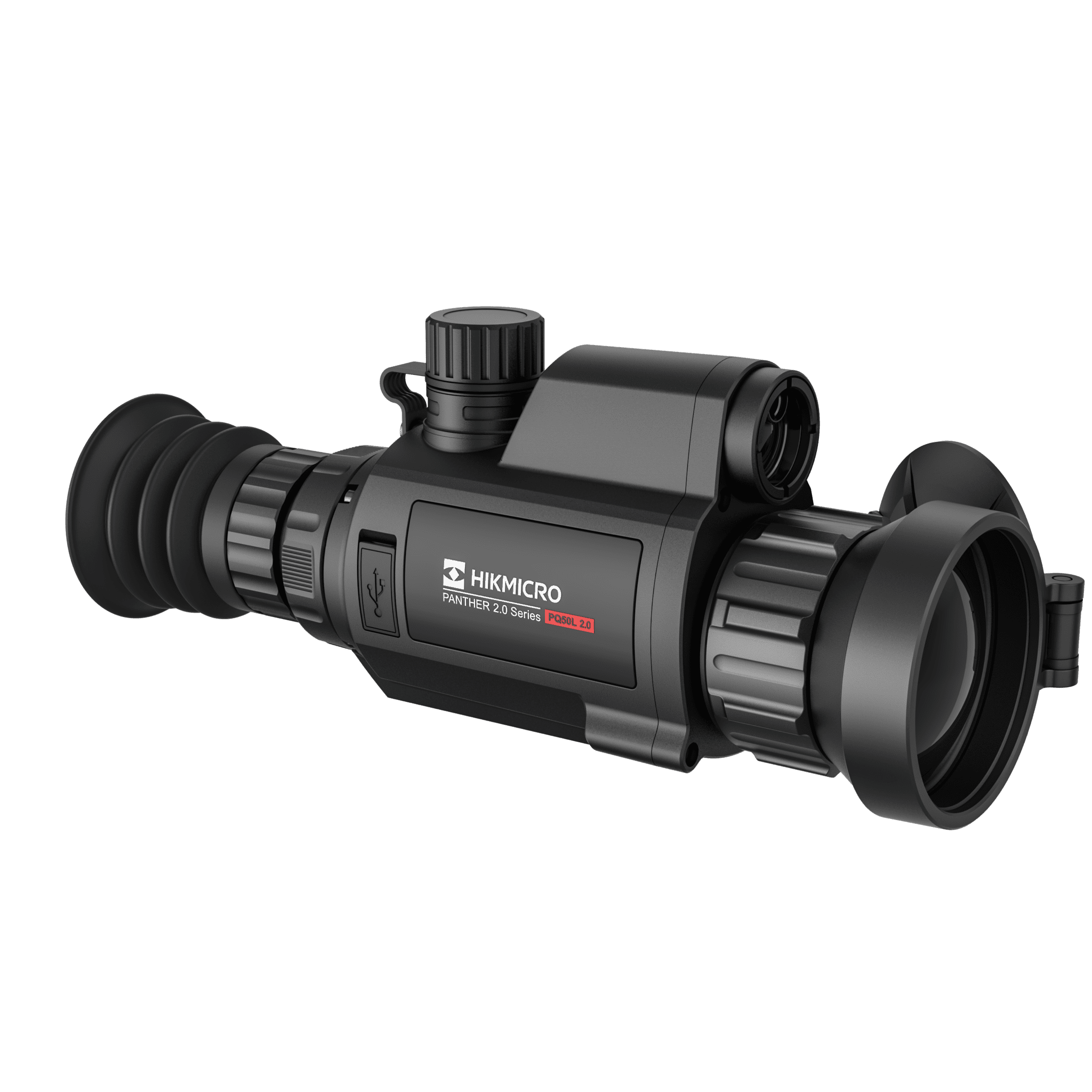

Panther 2.0 PQ50L Thermal Scope
Quote Range
$6,299.99
The HIKMICRO PANTHER PQ50L 2.0 Thermal Scope has a 640 × 512 thermal detector and 1024 × 768 OLED monitor. High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the obj...
The HIKMICRO PANTHER PQ50L 2.0 Thermal Scope has a 640 × 512 thermal detector and 1024 × 768 OLED monitor. High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background are with minimal temperature difference. The scope is mainly applied to scenarios such as hiking, hunting, searching and rescuing.
Add to quote
Add to Quote
More Details
- 640 × 512 thermal resolution with 12 μm detector
- High sensitivity thermal module NETD < 20 mK (25°C,F# = 1.0)
- 50 mm lens with detection range up to 2600 m
- 1024 × 768 resolution 0.39-inch OLED display
- Laser rangefinder detection range up to 600m
- Supports audio and recoil-activated recording
- High shock resistance up to 1000 g/0.4 ms
- Up to 5 hours of continuous operation
Product Specifications
| Image Sensor: | Uncooled Focal Plane Arrays |
| Max. Resolution : | 640 × 512 |
| Frame Rate : | 50 Hz |
| Pixel Interval: | 12 μm |
| NETD : | Less than 20 mK (@25°C), F# = 1.0 |
| Lens (Focal Length): | 50 mm |
| Detection Range : | 2600 m |
| Min. Focusing Distance: | 5 m |
| Aperture: | F1.0 |
| Magnification: | 2.6 x |
| Field of view(H x V), Degrees/M @100M: | 8.80° x 7.03°/15.39m x 12.29m |
| Display: | 1024 x 768, 0.39" OLED |
| Palettes: | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode: | Auto, Manual, External Correction |
| Exit Pupil : | 6 mm |
| Eye Relief: | 45 mm |
| Diopter (Range) : | -5D to +3D |
| Brightness Adjustment: | Yes |
| Tone Adjustment: | Cold, Warm |
| Record Video : | On-board video recording |
| Capture Snapshot: | Yes |
| Digital zoom: | Continuous digital zooming, 1x to 8x |
| Standby Mode: | Yes |
| Storage : | Built-in EMMC (16GB) |
| PIP : | Yes |
| DPC: | Yes |
| Hotspot: | Yes |
| Hot Track: | Yes |
| Distance Measurement : | Yes |
| Recoil-activation recording: | Yes |
| Audio Recording : | Yes |
| Max. Recoil: | 1000g/0.4 ms |
| Battery Type: | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time : | 5 h(25°C, with hotspot off) |
| Type-C Power Supply: | 5 VDC, 2 A Supports External Power Supply |
| Protection Level: | IP67 |
| Dimension: | 226.81 mm × 73.34 mm × 87.10 mm |
| Weight : | 585 g without battery |
| Working Temperature: | -30°C to +55°C (-22°F to 131°F) |
| Safety Class for Laser: | Class 1 |
| Wavelength: | 905 nm |
| Max. Measuring Range: | 600 m |
| Measurement Accuracy: | ± 1 m |
| Min. Measuring Range : | 10 m |
